When planning a building project, many clients assume that once they receive a set of drawings, construction can begin. In reality, not all drawings serve the same purpose. Two of the most important drawing stages in any project are design drawings and construction drawings, and understanding the difference can save you time, money, and frustration.

At first glance, both may look similar because they both show layouts, dimensions, and design ideas. However, they are created for very different purposes and at different stages of a project.

What Are Design Drawings?

Design drawings are prepared during the concept and development stages of a project. Their main purpose is to communicate the overall vision, layout, and appearance of the proposed building or space.

These drawings help the client, architect, and design team explore ideas and make key decisions before construction details are finalised. They are often used to present the design direction, obtain client approval, and, in some cases, support planning or preliminary costing.

Design drawings may include:

• Floor plans showing room layouts and space planning
• Elevations showing the exterior appearance of the building
• Sections illustrating key spatial relationships
• Concept sketches or 3D views
• Preliminary dimensions and general material ideas

At this stage, the drawings are focused more on what the project will look like and how it will function, rather than exactly how it will be built.

What Are Construction Drawings?

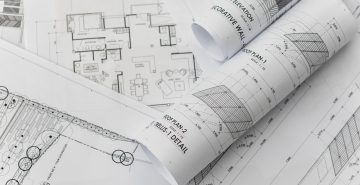

Construction drawings are the detailed technical documents used to actually build the project. They are developed after the design has been approved and coordinated with the necessary consultants.

These drawings provide the contractor and site team with the information required to execute the work accurately. They include dimensions, specifications, notes, levels, material references, and coordination details that reduce guesswork during construction.

Construction drawings typically include:

• Dimensioned floor plans

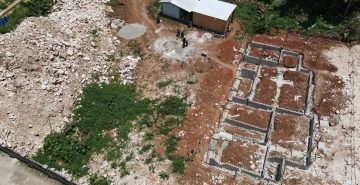

• Foundation and structural information
• Wall sections and construction details
• Door and window schedules
• Material schedules
• Reflected ceiling plans and service coordination, where required
• Material specifications and technical notes
• Site layout and setting-out information
• Connection details

In simple terms, construction drawings explain how the approved design should be built on site.

The Key Difference

The easiest way to understand the difference is this:

• Design drawings communicate the idea
• Construction drawings communicate the build

Design drawings are about vision, arrangement, and appearance.
Construction drawings are about accuracy, coordination, and execution.

A client may approve a beautiful design drawing package, but if the construction drawings are incomplete, the contractor may still face uncertainty on site. That uncertainty often leads to delays, variations, disputes, and additional costs.

Why This Difference Matters

Understanding the distinction between design drawings and construction drawings is important for any property owner or developer because it affects how smoothly the project moves from concept to construction.

1. It helps manage expectations

A client may think the project is “ready to build” once the design looks complete. But unless the technical construction information has been developed, the contractor may not have enough detail to price or execute the work properly.

2. It improves cost planning

Construction drawings provide the level of detail needed for more accurate pricing, material take-offs, and project planning. Relying only on design drawings can lead to rough estimates rather than reliable cost projections.

3. It reduces site errors and delays

When construction drawings are clear and coordinated, the contractor has better guidance on dimensions, materials, levels, and details. This reduces ambiguity and limits costly mistakes on site.

4. It supports contract administration

Construction drawings often form part of the contract documents. They become a key reference when assessing scope, quality, variations, and whether the work has been carried out in accordance with the agreed design.

A Simple Example

Imagine you are building a home and the design drawing shows a modern kitchen layout with an island, large windows, and open-plan living. That gives you the vision.

But the contractor still needs to know:

• the exact wall dimensions
• window sizes and sill heights
• countertop levels
• door swings and clearances
• plumbing and electrical locations
• floor finishes and ceiling details

That information comes from the construction drawing package, not just the design drawings.

Final Thoughts

Both design drawings and construction drawings are essential, but they serve different roles in the life of a project.

Design drawings help shape the vision, communicate ideas, and gain approvals.
Construction drawings turn that vision into a buildable, coordinated set of instructions for the contractor.

If you are planning a residential, commercial, or development project, it is important to know what stage your drawings are at and whether they are sufficient for pricing, approvals, or construction. Starting work with incomplete or unclear documentation can create avoidable problems later in the project.

At AJAWI Limited, we believe good projects start with clear documentation. Whether you are in the early design phase or preparing for construction, understanding the role of each drawing stage can help you make better decisions and protect your investment.
